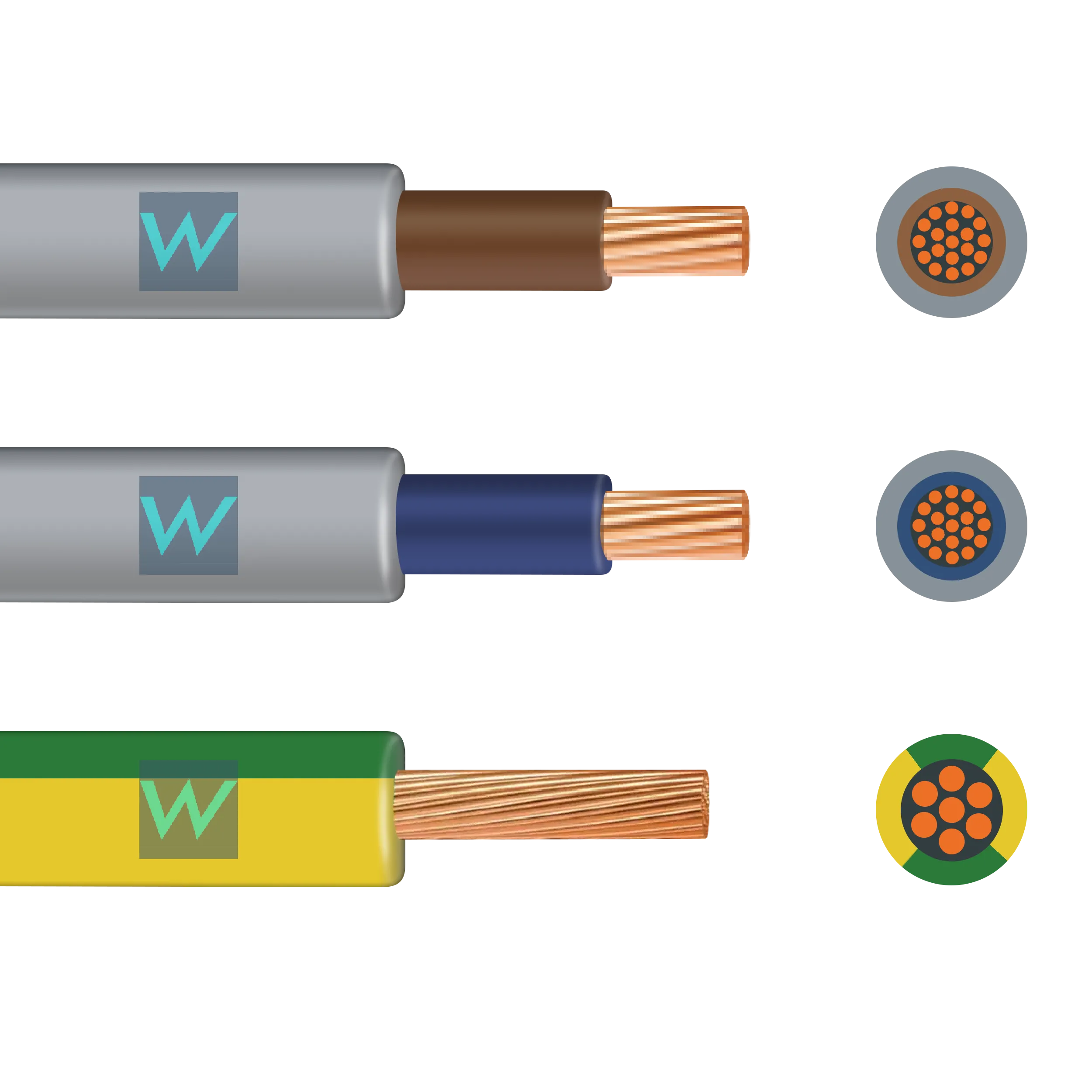

1m Flexi Meter Tails Pack 19-Strand 25mm Brown & Blue 6181YF & 16mm Green/Yellow 6491X - 1m

Kit contains

• 1m of 25.0mm 6181YF Double Insulated Flexi 19 Stranded in Brown & Blue
• 1m of 16.0mm 6491X Single Core in Green/Yellow

6181YF Double Insulated Flexi 19 Stranded

PVC single core cable, double insulated with a voltage rating of 300/500V. It is a general surface wire cable for fixed installation, domestic and light industrial use where extra flexibility is required.

Certification: CE Marked, BASEC Approved, ISO 9001.

Standard: BS 6004:2012

• Core Size: 25.0mm
• Outer Sheath Colour: Grey
• Inner Core Colour: Brown & Blue
• No. of Cores: 1-Core
• Material: PVC Sheath, PVC Insulation, Copper Conductor
• Cable Profile: Round
• Current: 114A
• Resistance OHM/KM: 0.727
• Cable Length: 1m
• Usage: For use in Consumer units

Single Core 6491X

6491X Cable H07V-R/H07V-U to BS6004 is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.

Certification: CE Marked, BASEC Approved, ISO 9001.

Standard: BS EN 50525-2-31

• Core Size: 16.0mm
• Outer Sheath Colour: Green/Yellow
• No. of Cores: 1-Core
• Material: PVC Sheath, PVC Insulation, Copper Conductor
• Cable Profile: Round
• Current: 98A
• Resistance OHM/KM: 1.15
• Usage: For use in In or on light fittings and inside appliances, switchgear and control gear. Green/Yellow for use as Earth Bonding.
